Protocol eras

The 2026-07-28 revision of MCP made substantial changes to the protocol. The Inspector therefore treats protocol era (legacy or modern, meaning before or as of that revision) as a first-class, per-server setting, orthogonal to the transport: the same HTTP URL can be inspected as a legacy server or as a modern one. Several tabs render meaningfully different UI and traffic depending on which era is in effect.

The Protocol Era setting

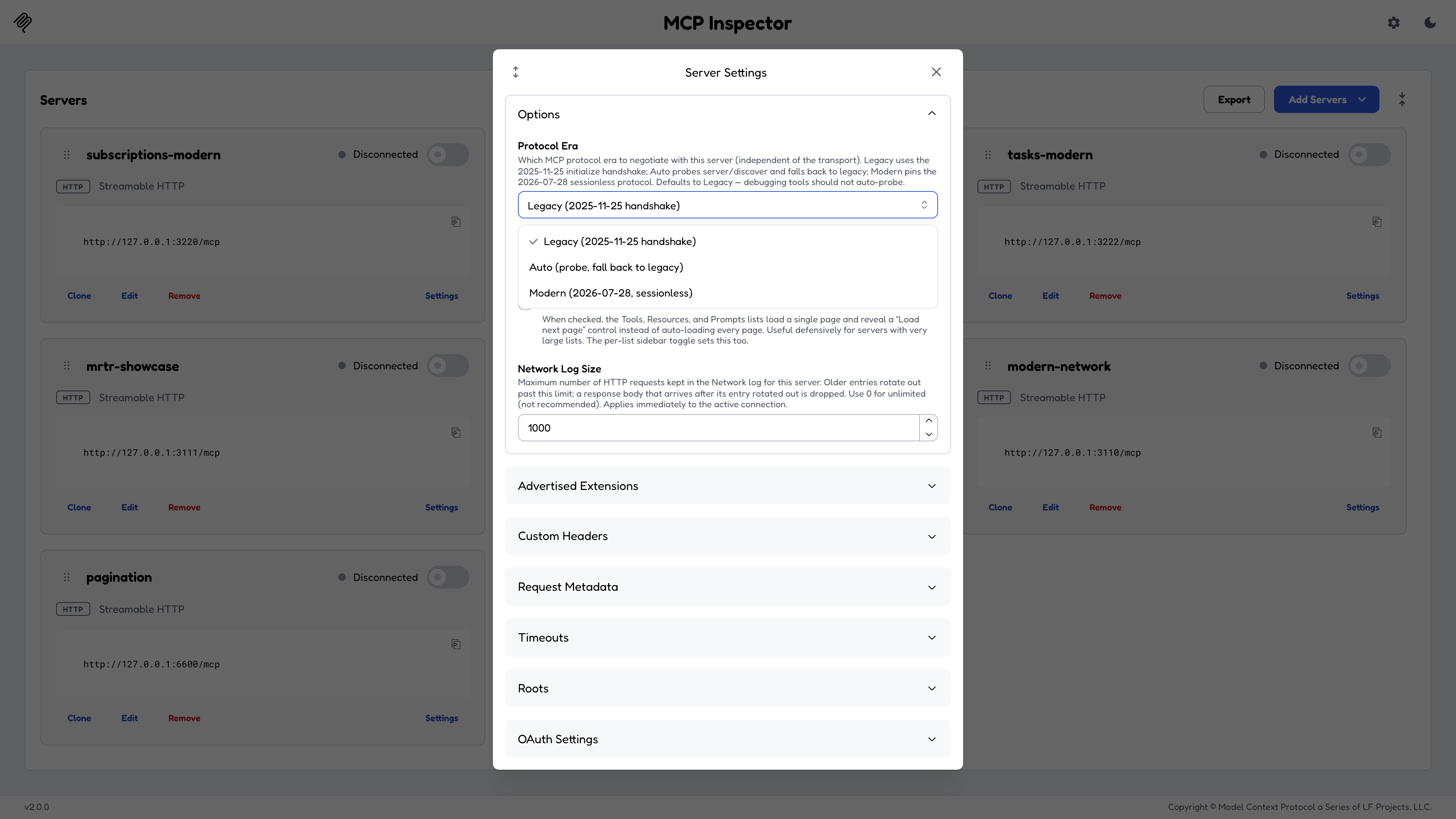

Each server carries a protocolEra of legacy, auto, or modern. In the web client it lives in Server Settings; in a catalog or config file it is the protocolEra field; the CLI and TUI read it from that same file, and their --protocol-era <legacy|auto|modern> flag overrides it for a single run.

Once connected, the negotiated era is shown as a badge on the Protocol tab’s Messages header and in Connection Info. On a modern connection, server/discover also supplies capabilities (including extensions), instructions, and the list of supportedVersions. The server’s name and version arrive in the result _meta under io.modelcontextprotocol/serverInfo.

Reproducing each era locally

Every section below ends with a Reproduce with … pointer to a JSON config for one of the composable test servers shipped in the Inspector repository. Clone the repo and build the test servers:

git clone https://github.com/modelcontextprotocol/inspector
cd inspector && npm install && npm run build
cd clients/web && npm run test-servers:build && cd ../..

Then, from the repo root, start a server from the config a section names:

node test-servers/build/server-composable.js --config test-servers/configs/<name>.json

The server prints its URL on stderr. If the config’s port is already in use, it binds the next free port, so use the printed URL rather than assuming the port. Add that URL as a server in the Inspector, with the Protocol Era the section names.

Logging

Legacy

Logging is session-scoped. The client sends logging/setLevel once, and the server emits notifications/message at or above that level for the rest of the session.

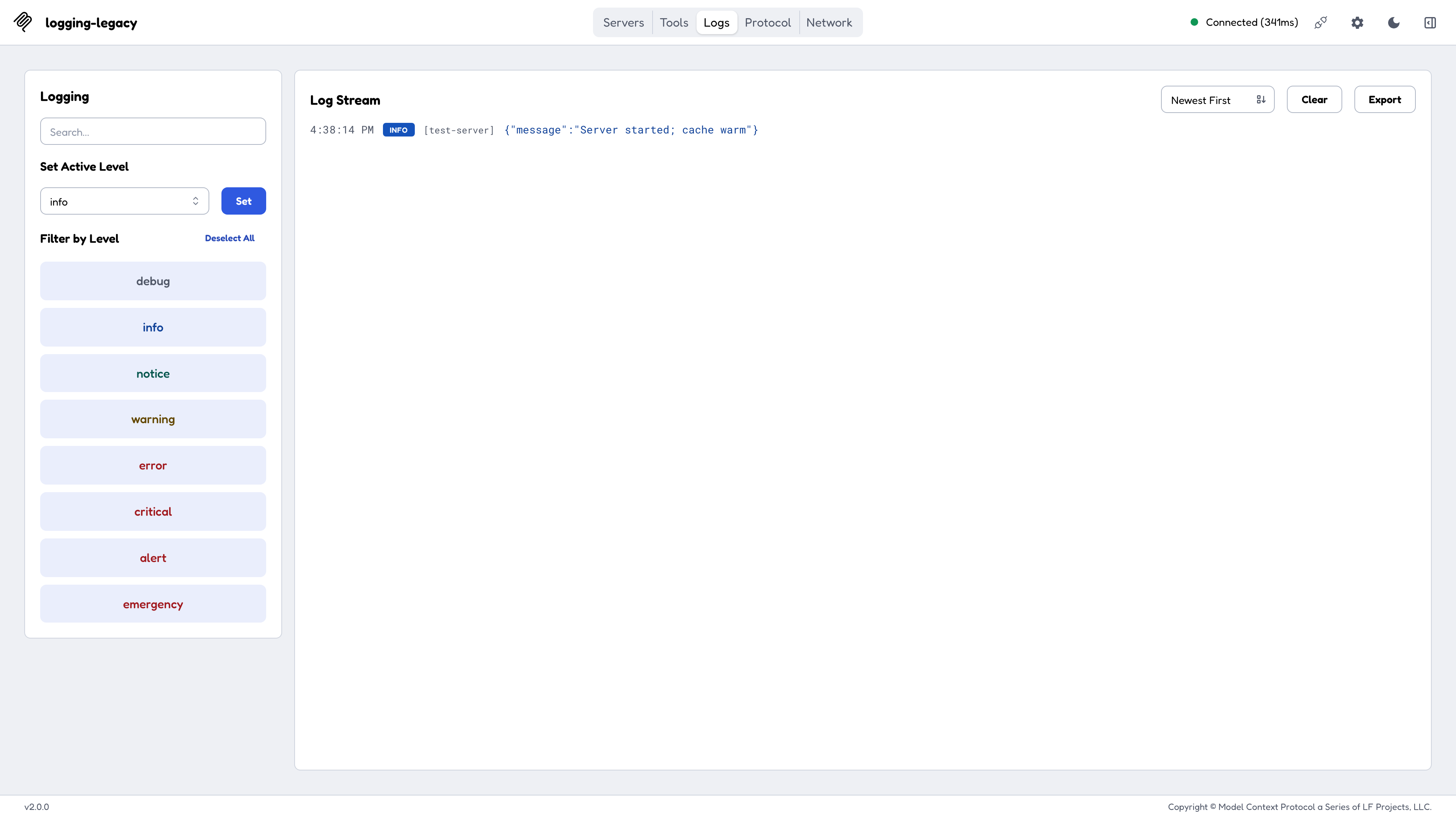

The Logs tab shows a Set Active Level selector plus a Set button. Choose a level, click Set, and subsequent server logs stream into the panel.

Reproduce with test-servers/configs/logging-legacy-http.json.

Modern

logging/setLevel is gone. Instead the client opts in per request, by stamping _meta["io.modelcontextprotocol/logLevel"] on each outgoing request. A server MUST NOT emit notifications/message for a request that did not opt in.

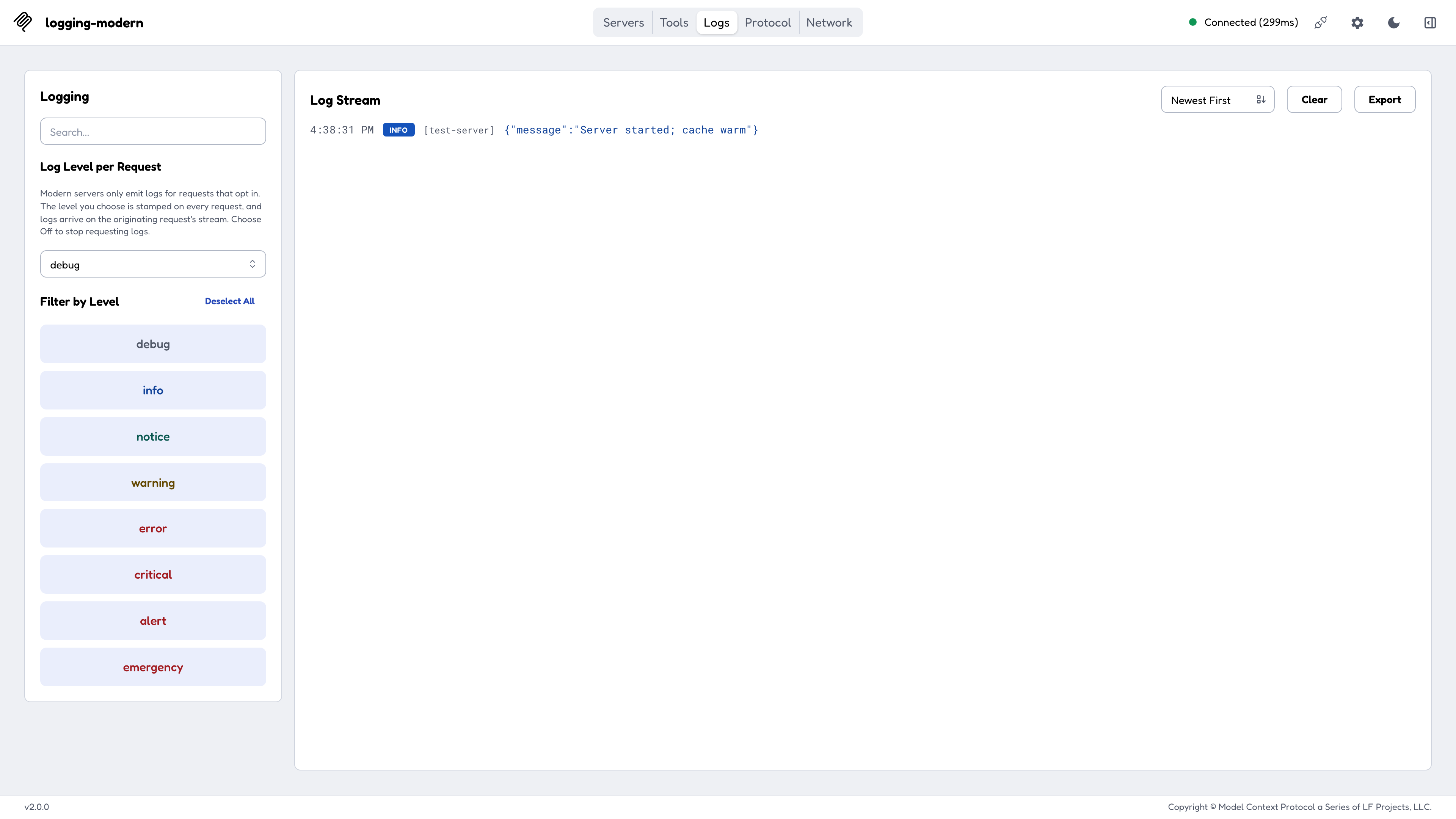

The Logs tab therefore shows a Log Level per Request control instead. Pick a level and every subsequent request carries the stamp, visible in the Network tab’s request body. Logs emitted while handling a request ride that request’s SSE response stream.

Set the control to Off and the logLevel key is omitted entirely, so the same tool call produces no logs at all. That silence is correct behavior, not a bug.

The per-server default is debug (opted in at the most verbose level, since the Inspector is a debugging tool); set modernLogLevel: "off" on a server to opt back out by default.

Reproduce with test-servers/configs/logging-modern-http.json.

Resource subscriptions

Legacy

Clicking Subscribe on a resource sends resources/subscribe. The Subscriptions section lists the URI with no stream chrome. When the resource changes, the server emits notifications/resources/updated and the subscribed tile’s last-updated time is stamped.

Reproduce with test-servers/configs/subscriptions-legacy-http.json, which also serves an update_resource tool so you can drive the notification round-trip yourself.

Modern

The same Subscribe button instead sends subscriptions/listen, with a filter carrying resourceSubscriptions plus whichever *ListChanged opt-ins apply (such as resourcesListChanged). The subscription is confirmed when the server sends notifications/subscriptions/acknowledged.

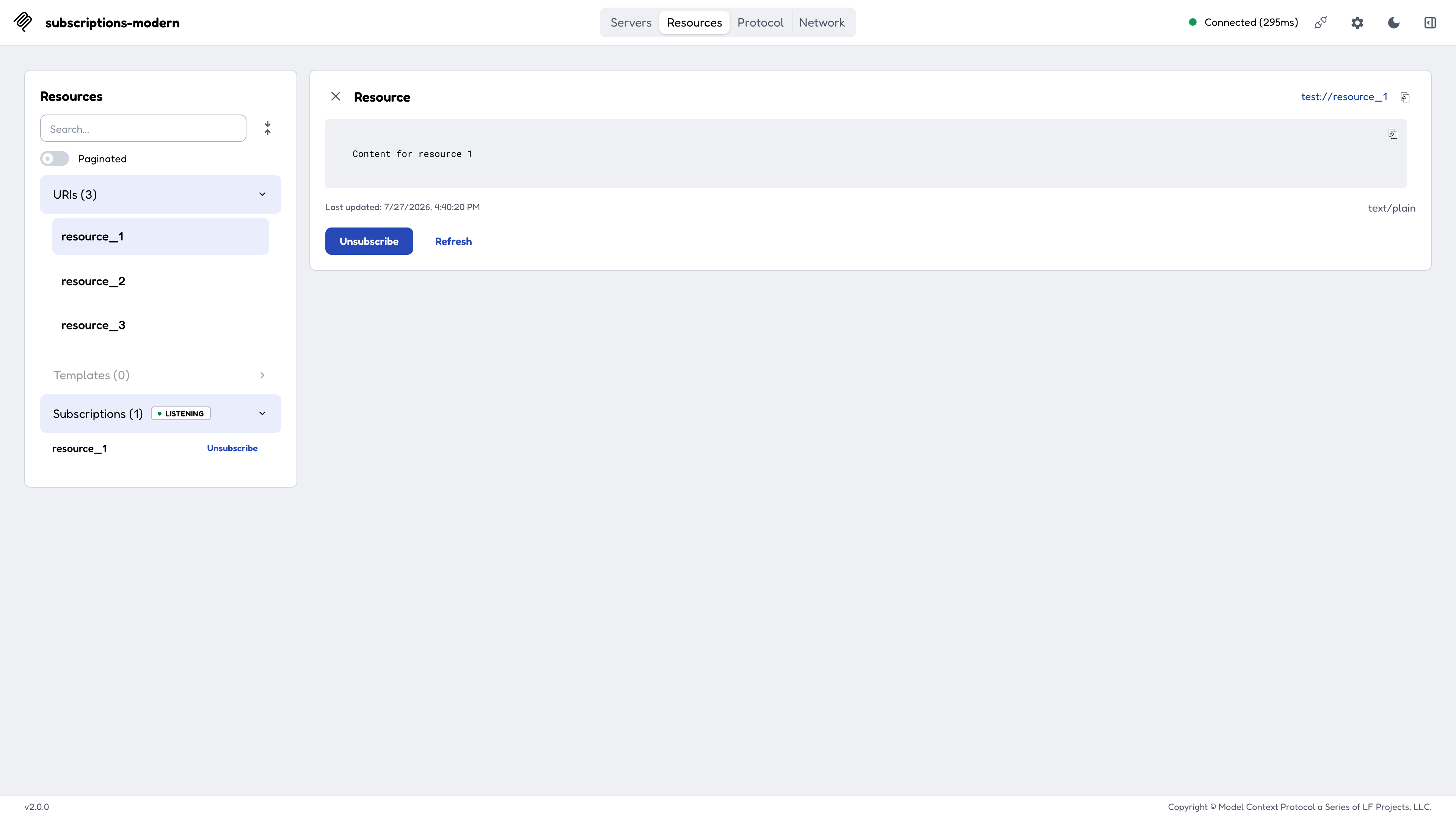

Because the subscription is now a long-lived stream rather than a session flag, the Subscriptions section grows a stream-status badge in its header that moves from Connecting... to Listening. If the stream drops, the badge shows Reconnecting... while the Inspector re-sends subscriptions/listen. It shows Stream ended once the stream closes for good. It shows Not acknowledged when the server answers the listen with a plain result and never sends the acknowledgement; the Inspector does not retry in that case.

Reproduce with test-servers/configs/subscriptions-modern-http.json. To see the Not acknowledged state, use test-servers/configs/subscriptions-never-acknowledged-http.json. That server acknowledges your first subscription, then refuses every later listen, so subscribing to a second resource trips the badge.

Tasks

Tasks change the most between protocol eras, including how the Inspector UI tab is gated.

Legacy

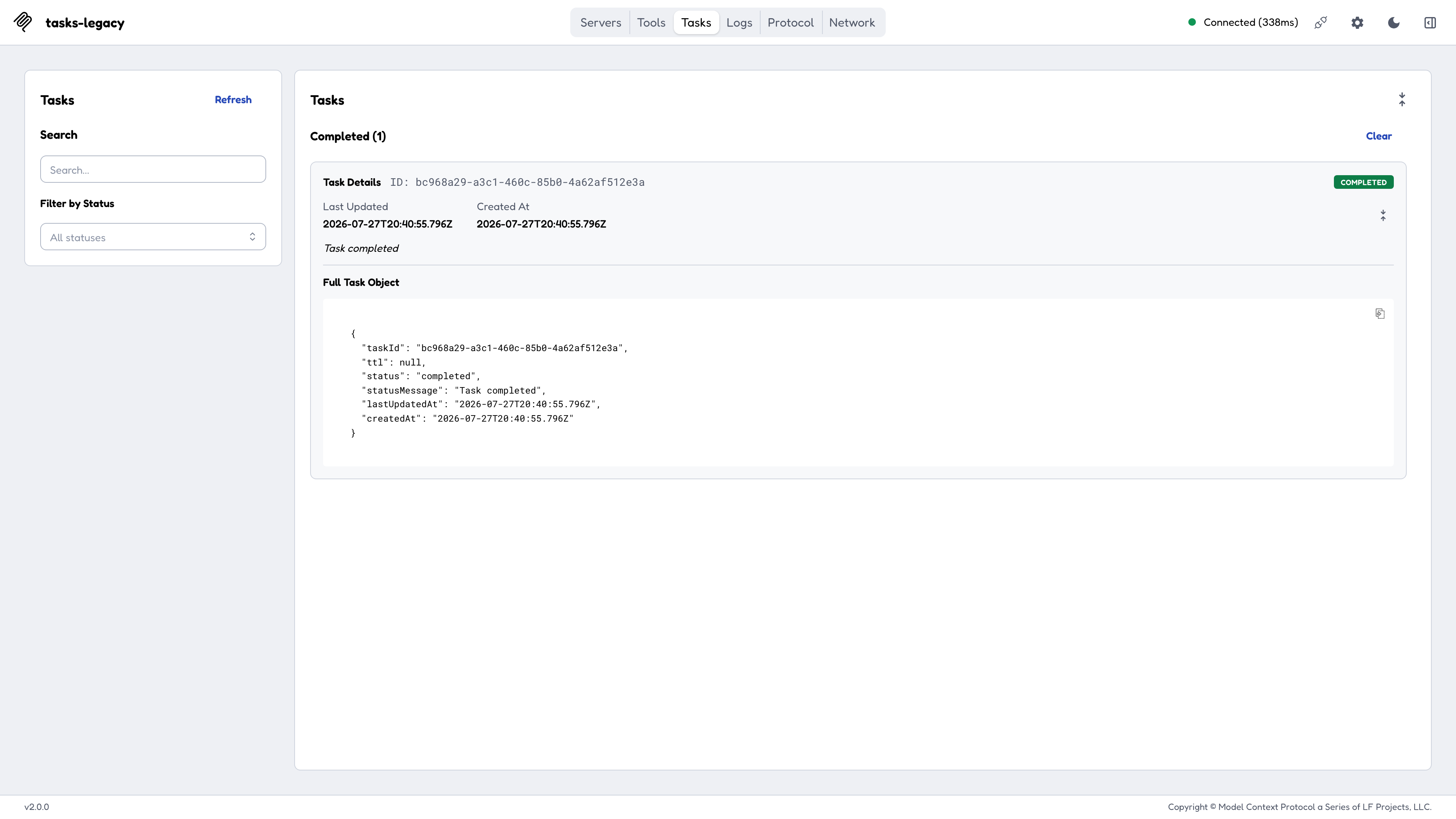

The Tasks tab appears when the server advertises capabilities.tasks. Run a tool with Run as task enabled and the tab lists it, populated by tasks/list and polled with tasks/get. The completed payload is fetched with a blocking tasks/result, and Cancel sends tasks/cancel.

Reproduce with test-servers/configs/tasks-legacy-http.json.

Modern

Tasks are an extension (io.modelcontextprotocol/tasks, SEP-2663), so the tab is gated on the server advertising that extension rather than on capabilities.tasks.

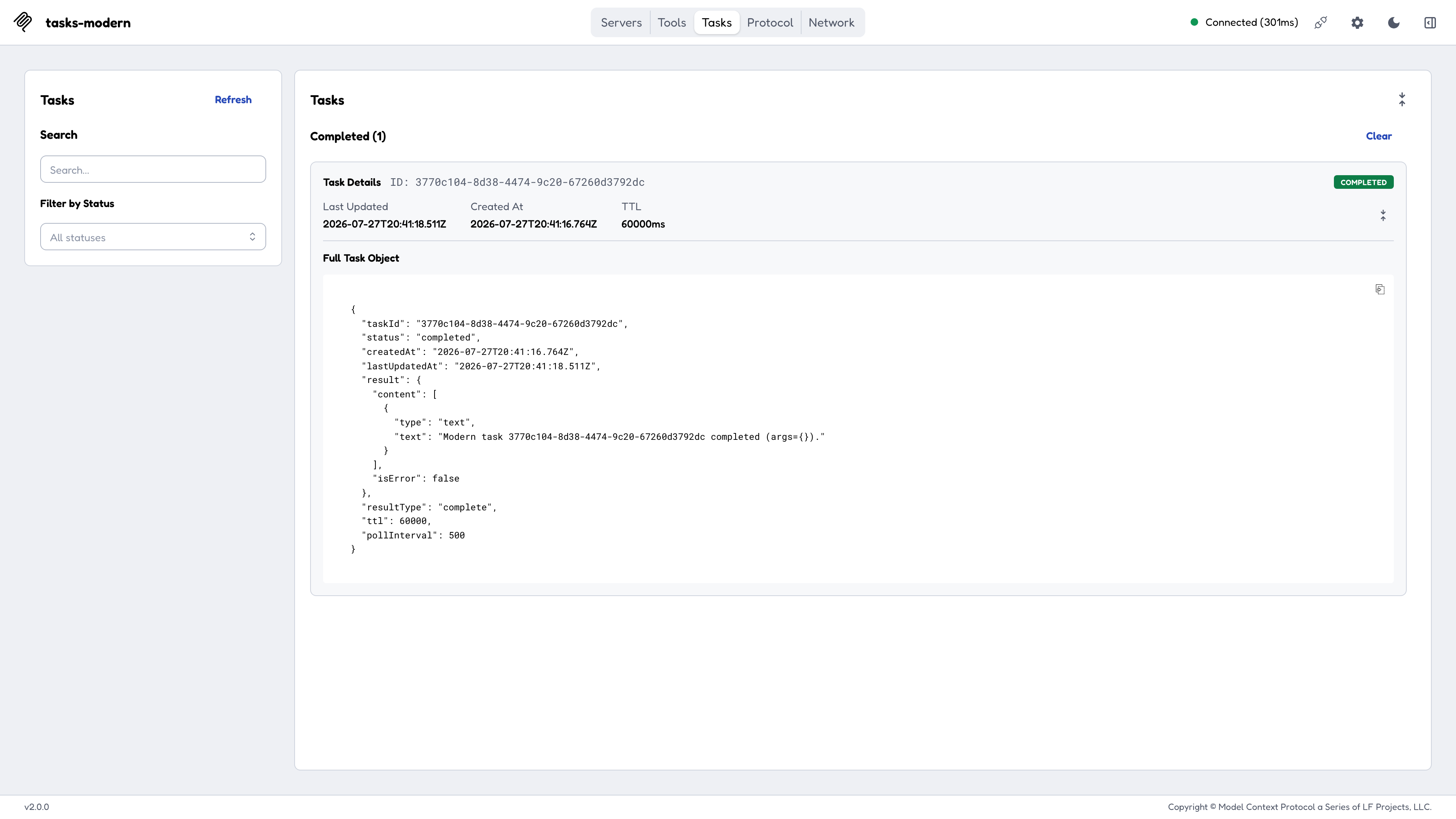

Run a tool as a task and tools/call returns a CreateTaskResult (resultType: "task", visible in the Protocol and Network tabs). The Inspector polls tasks/get only; there is no tasks/list, so Refresh re-polls the handles the client already knows about. A completed task inlines its result, with no blocking tasks/result call.

A task that needs more information moves to input_required and surfaces an embedded elicitation in the pending-request modal (the dialog the web client opens whenever a request is waiting on you). Answering it sends tasks/update carrying the inputResponses, and the next poll completes.

Reproduce with test-servers/configs/tasks-modern-http.json (tools modern_task and modern_input_task).

Multi-round tool results (MRTR)

On the modern era a tool can return input_required instead of a final result, embedding an elicitation, a sampling request, or a roots/list request. The client answers that embedded request and retries the tools/call under a fresh JSON-RPC id until the call reaches complete.

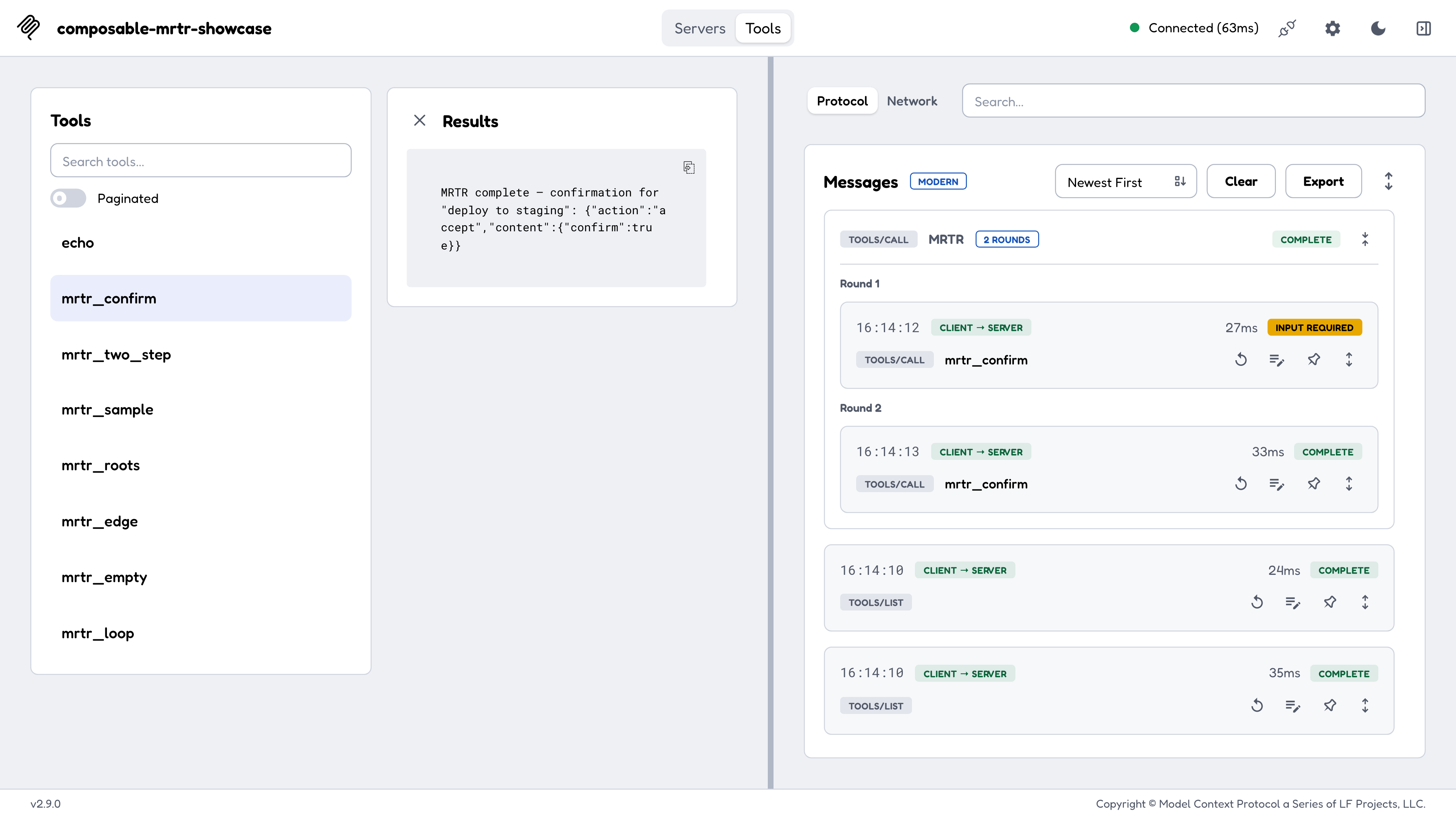

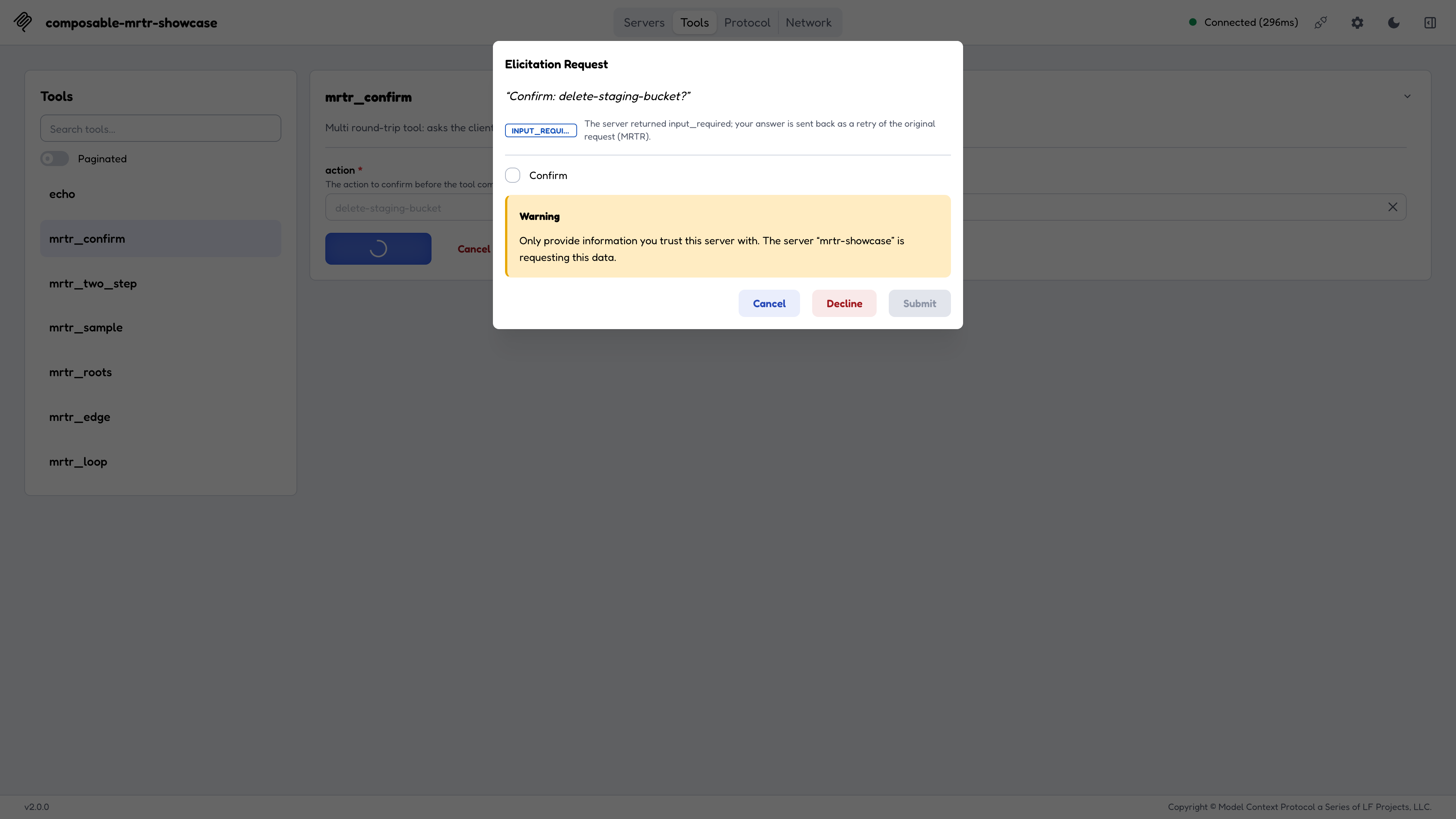

The Inspector drives MRTR manually, so each round pauses at the pending-request modal, tagged input_required, for you to answer. The Protocol view groups the whole exchange as one MRTR conversation rather than as unrelated calls.

test-servers/configs/mrtr-showcase-http.json bundles every shape in one modern server:

Tools: mirrored headers and excluded tools

SEP-2243 lets a tool annotate an argument with x-mcp-header, asking a Streamable HTTP client to mirror that argument’s value into an Mcp-Param-* request header.

The Inspector surfaces both halves of that contract in the Tools tab:

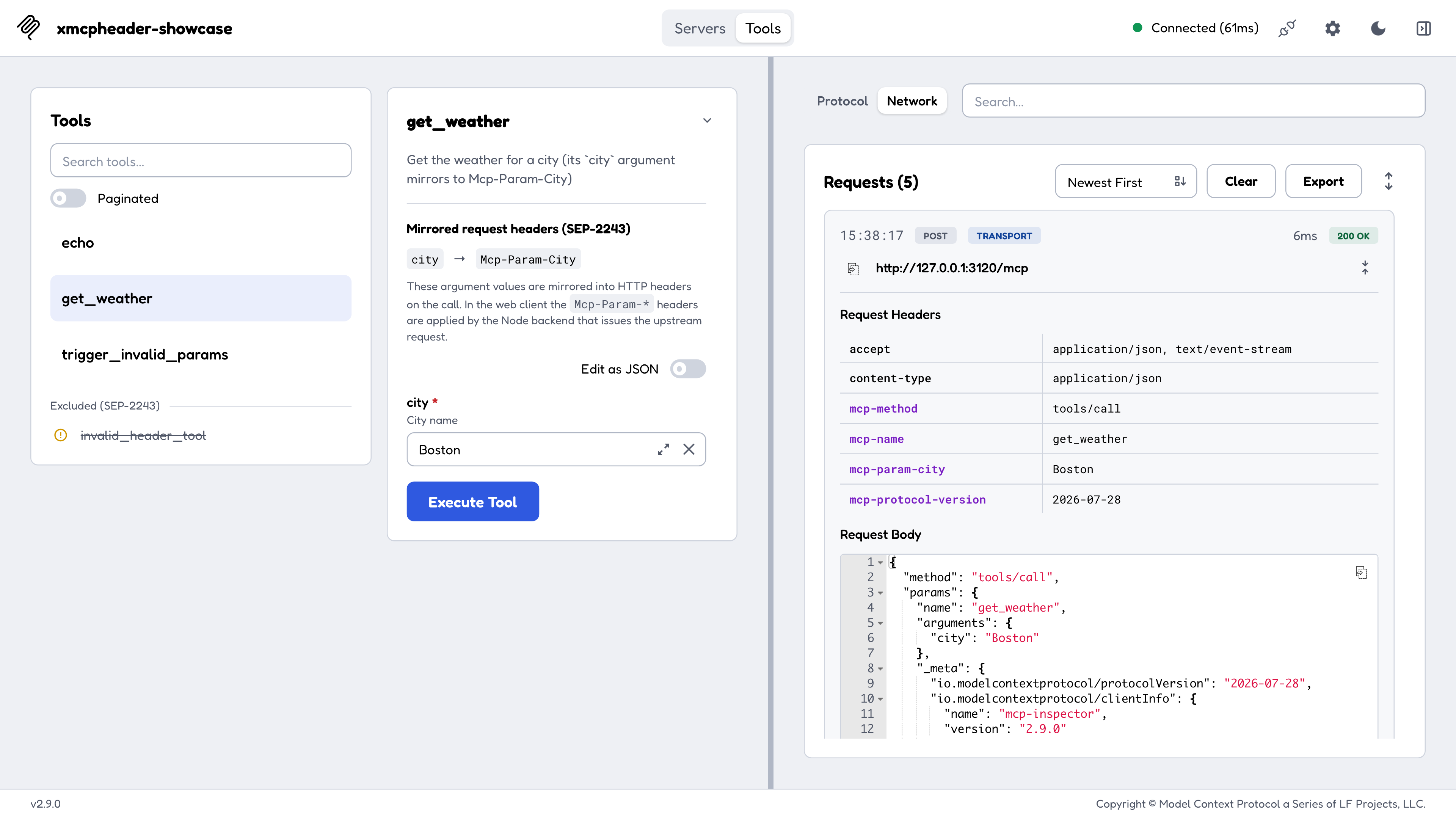

• A tool with a valid annotation shows a “Mirrored request headers (SEP-2243)” section in its detail panel, for example city -> Mcp-Param-City.
• A tool with an invalid annotation (say, a header name of "Bad Header", where the space makes it an invalid RFC 9110 token) appears struck through in the sidebar under an “Excluded (SEP-2243)” divider, with the reason on hover. A conforming client MUST drop such a tool from tools/list; the Inspector shows you why it was dropped instead of silently hiding it.

Reproduce with test-servers/configs/xmcpheader-modern-http.json.

Mcp-Param-City header, and the Network sidebar confirms the call carried mcp-param-city: Boston. invalid_header_tool is struck through under the Excluded (SEP-2243) divider.">

-32602 error panels

A tools/call that rejects with -32602 renders as a distinct error panel, on either era:

• Unknown Tool: when the message names a tool the server does not list. Reproduce by calling any name absent from the server’s tools/list.
• Invalid Parameters: any other -32602. Reproduce with the trigger_invalid_params tool in the config above.

The two share one error code, so the Inspector reads the message to tell them apart. Any other error code renders as a generic failure.

Network and Protocol: headers and the error taxonomy

The modern era standardizes a set of Mcp-* HTTP headers and introduces a richer JSON-RPC error taxonomy (SEP-2243 / SEP-2575). The two monitoring tabs divide the work:

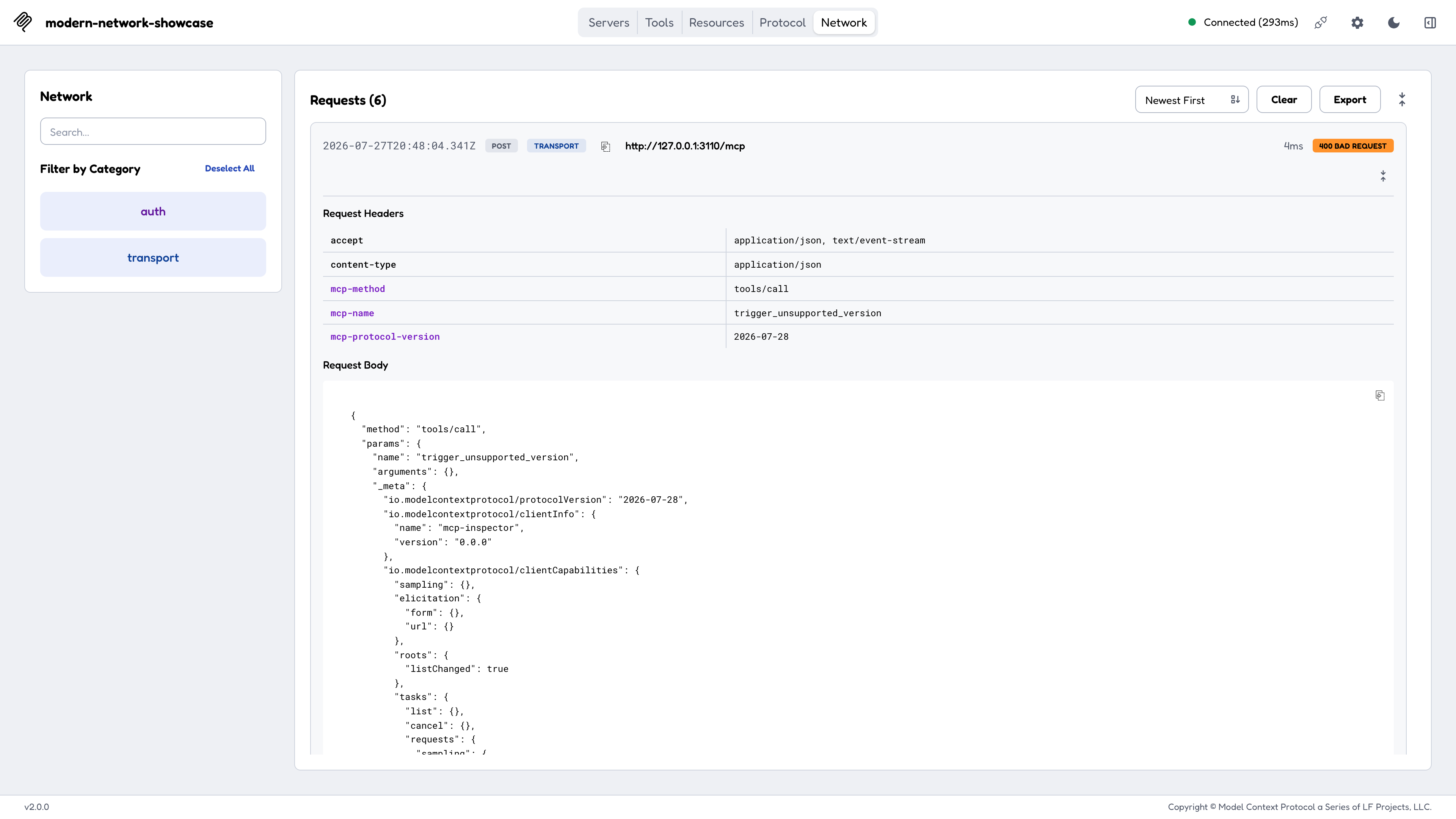

• The Network tab is the HTTP view: mirrored Mcp-* headers are highlighted and sentinel values decoded.

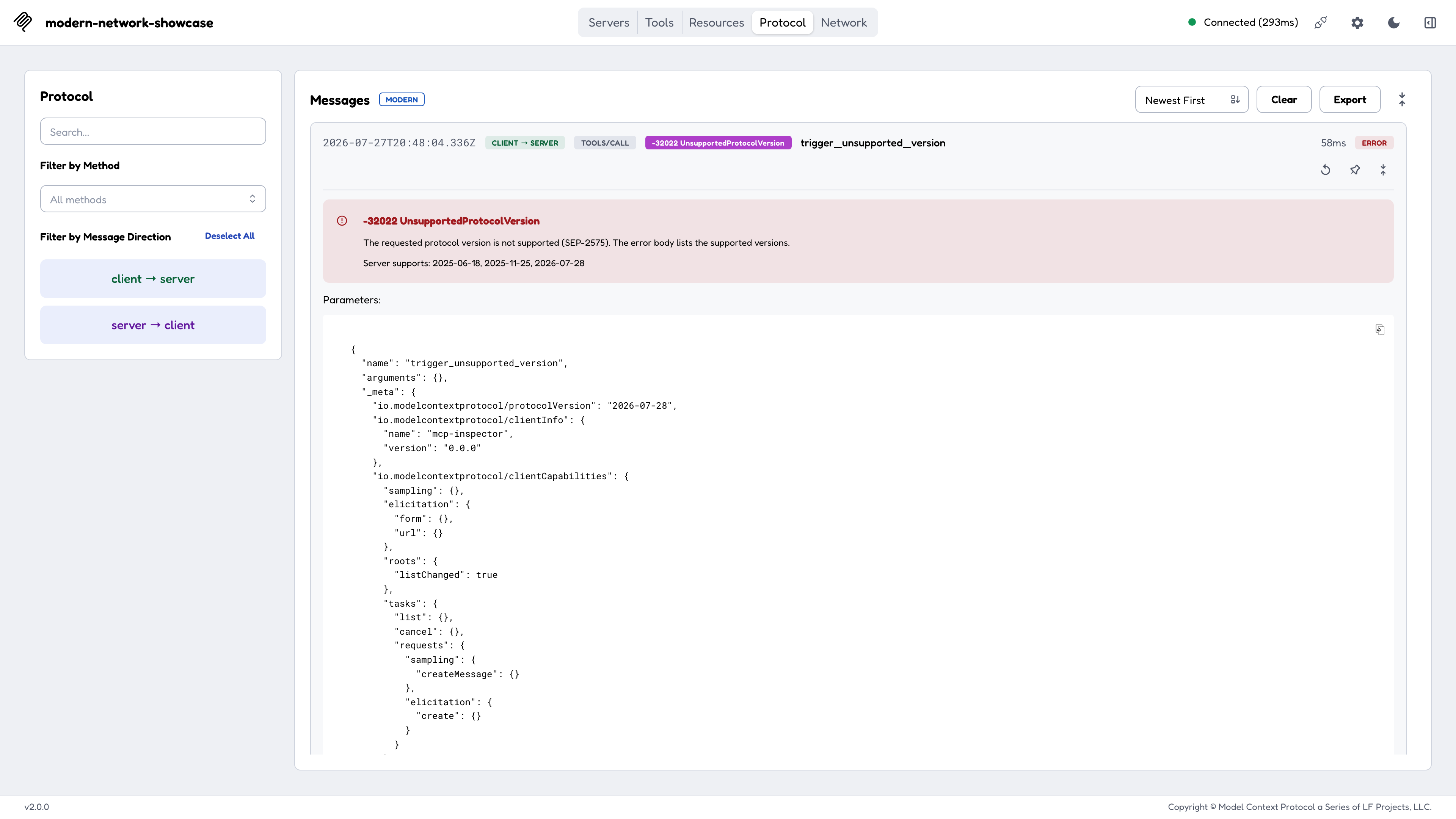

• The Protocol tab is the JSON-RPC view: each spec error renders distinctly rather than as a generic failure.

test-servers/configs/modern-network-http.json serves four tools that produce a real HTTP status plus a JSON-RPC error body, one per class:

Cancellation

On a legacy connection, cancelling an in-flight tool call sends notifications/cancelled. On a modern Streamable HTTP connection the Inspector instead closes that request’s own SSE response stream, which is the 2026-07-28 cancellation signal. Over stdio, cancellation is still notifications/cancelled.

Reproduce with test-servers/configs/cancellation-modern-http.json: run slow_task, click Cancel after a few seconds, and the server’s terminal prints how far the task got before it stopped.

Sessions

A legacy Streamable HTTP connection may carry a server-assigned session id (Mcp-Session-Id), which the client tears down with an HTTP DELETE. A modern connection is sessionless and per-request: with no session id the client SDK sends no DELETE to the server, so disconnect is purely local.

A legacy connection also opens a standalone GET notification stream after initialize, to carry notifications that do not belong to any request. The legacy-only Suppress Notification Stream option in Server Settings skips that stream, so you can inspect a server that cannot serve a second concurrent request. Modern connections never open the stream, so the option does not apply to them.

This has a practical consequence for your own test servers. A stateless modern handler constructed per request cannot hold state between calls, which is why test-servers/configs/subscriptions-modern-http.json, unlike its legacy counterpart, omits an update_resource tool: the mutation would run against a throwaway server instance and be invisible to the next read.
